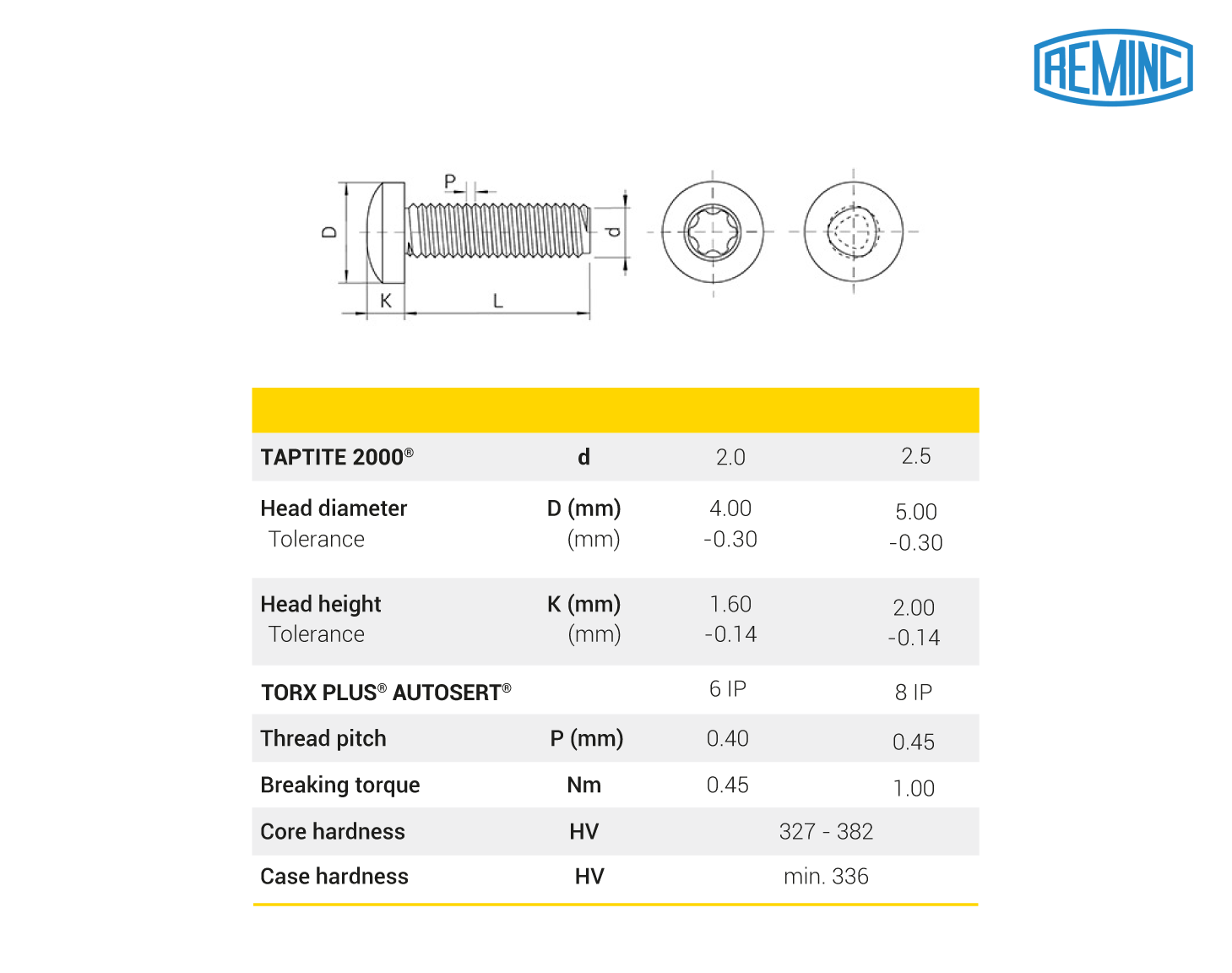

TAPTITE 2000® screw, Pan head TORX PLUS® AUTOSERT®, CORFLEX® N™

TECHNICAL FEATURES

Licensed TAPTITE 2000® thread forming screw.

• Pan head TORX PLUS® AUTOSERT® recess
• Zinc plated 5µm Cr(III) + Lubricated + Baking
• RoHS compliant
• CORFLEX® N™ Neutral hardened

APPLICATIONS

TAPTITE 2000® screws have been specially designed for assemblies in steel and light alloys in:

• Components that require a low threading torque to avoid damaging other components, e.g. PCB assembly.
• Structural components that require high pull-out resistance.
• Components that require a high tightness level.
• This product is not recommended for use on steel.

BENEFITS

• The reduction of carbon content on the screw surface minimizes the risk of galvanic corrosion with the aluminum.
• Provides excellent resistance to alternating loads and thermal shock.
• Easy insertion into the hole, low axial end load.
• Low thread forming torque.
• Avoids chips creation.
• High pull-out resistance and high stripping torque.
• Higher clamping.
• Higer compression.
• Excellent vibration loosening resistance.

Contact us if you need 3D CAD files

Click here if you need more information about this thread
