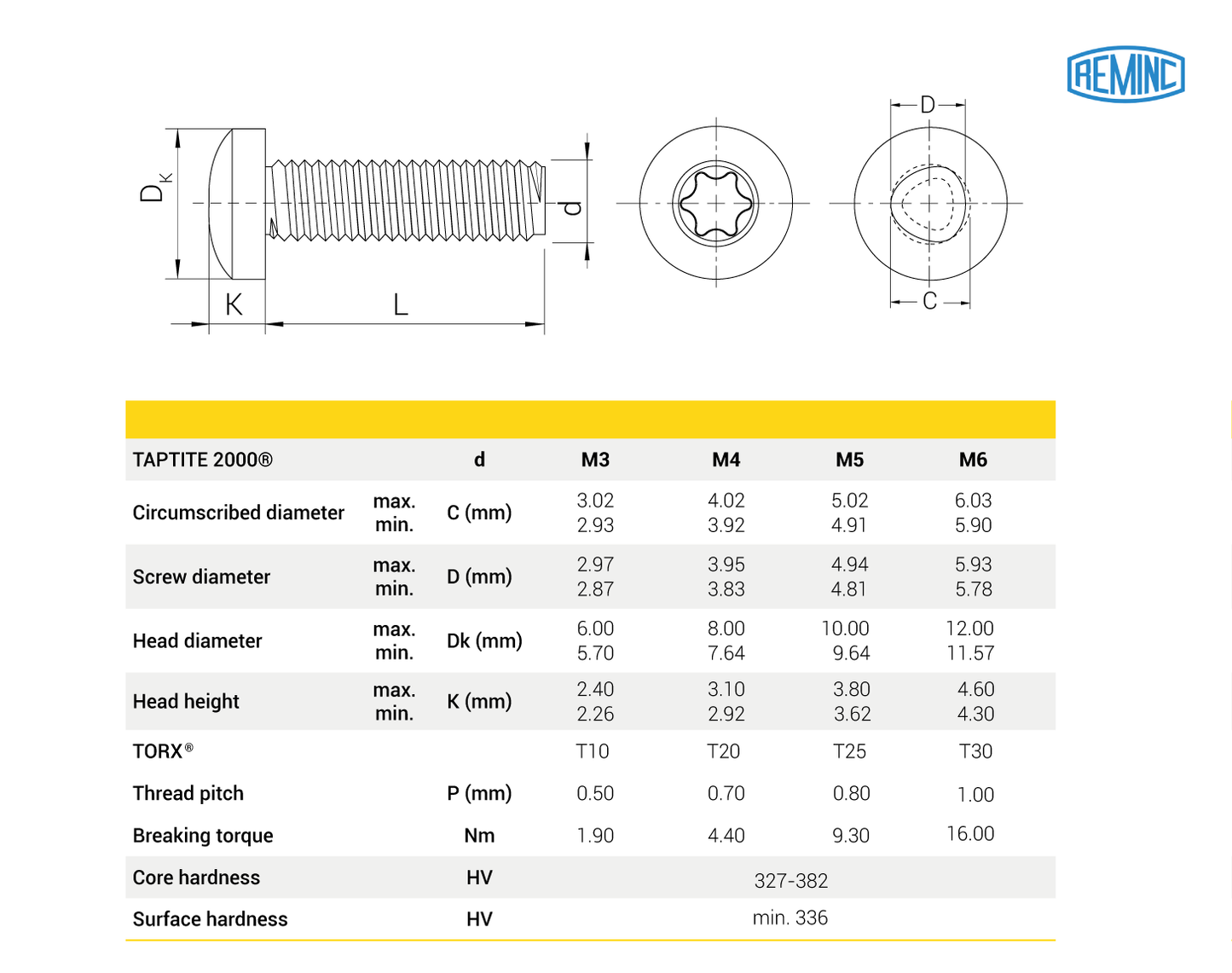

TAPTITE 2000® Licensed screw, Pan head TORX® recess, CORFLEX® N™

TECHNICAL FEATURES

Licensed TAPTITE 2000® thread forming screw.

• Pan head TORX® recess
• Zinc plated 5µm Cr(III) + Lubricated + Baking
• RoHS compliant
• CORFLEX® N™ Neutral hardened

APPLICATIONS

TAPTITE 2000® screws have been specially designed for assemblies in aluminum and light alloys in:

• Components that require a low threading torque to avoid damaging other components, e.g. PCB assembly.
• Structural components that require high pull-out resistance.
• Components that require a high tightness level.
• This product is not recommended for use on steel.

BENEFITS of TAPTITE 2000®CORFLEX® N™

• The reduction of carbon content on the screw surface minimizes the risk of galvanic corrosion with the aluminum.
• Provides excellent resistance to alternating loads and thermal shock.
• Easy insertion into the hole, low axial end load
• Low thread forming torque
• Avoids chips creation
• High pull-out resistance and high stripping torque
• Higher clamping
• Higer compression
• Excellent vibration loosening resistance
