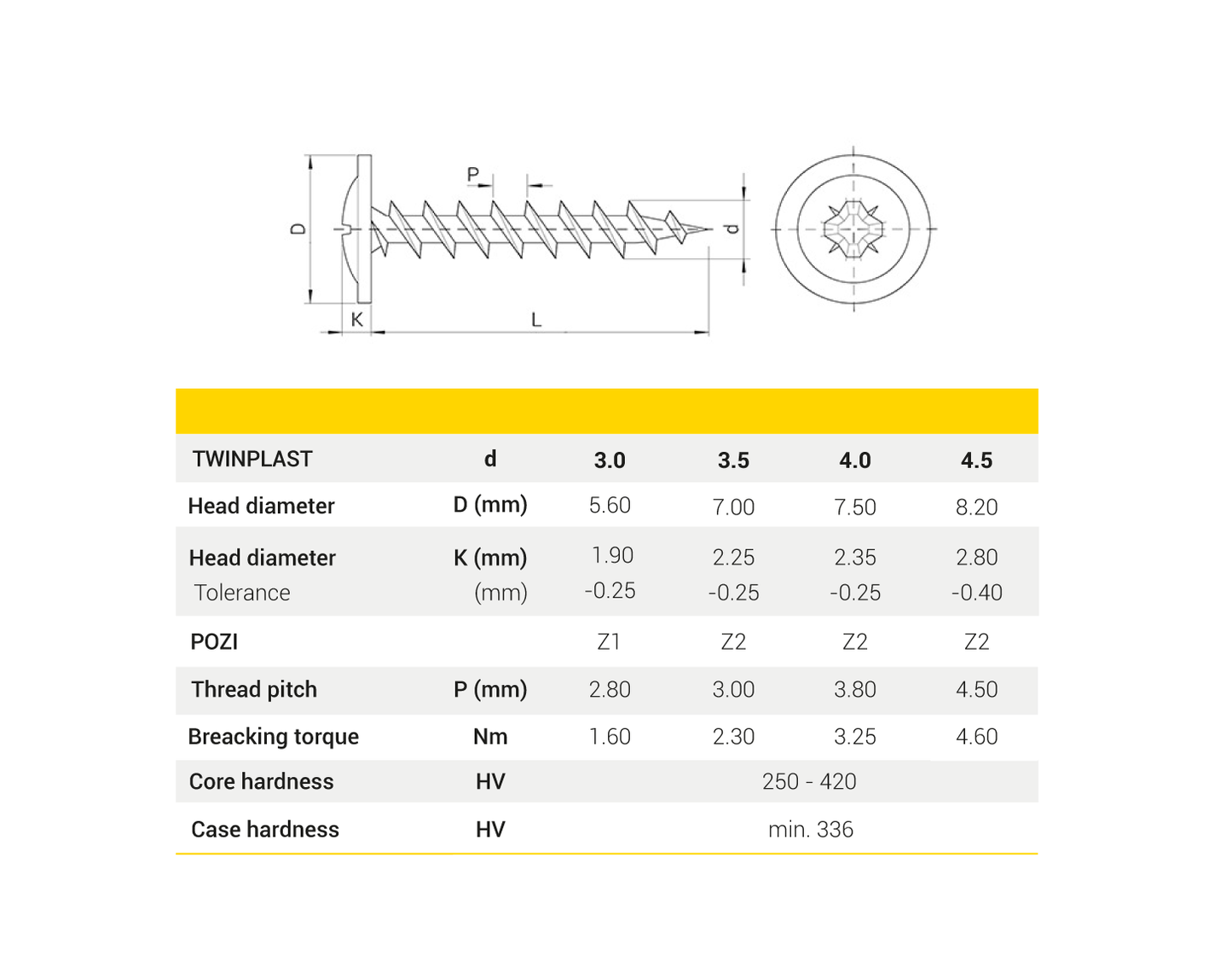

TWINPLAST Zinc plated screw, Pan head flange POZI , CUT-OFF point

TECHNICAL FEATURES

TWINPLAST thread forming screw for soft plastics.

• Low Pan head POZI recess
• Zinc plated 5µm Cr(III)
• RoHS compliant
• Neutral hardened

APPLICATIONS

TWINPLAST screw is recommended for the assembly on very thin plastic elements, especially blown plastic parts. TWINPLAST thread design and the sharp point allow the screw to be inserted without pilot holes or boss. It can be used when plastic thickness is between 1/3 and 2/3 of the screw diameter.
